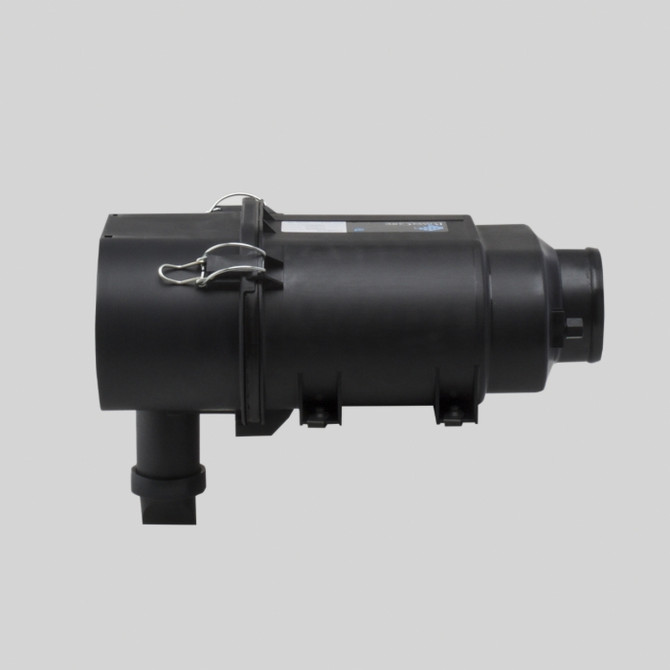

D080186 Donaldson Air cleaner, psd powercore
AIR CLEANER ASSEMBLY, PFD POWERCORE(Replaces D080020)Cross ReferenceNacco MaterialsS01351990002Pellenc25B06AThomas92025636…
Nil-Stock Call for availability (08) 9303 4982
All Shipped orders are from our Wangara Branch
Wangara:
Nil-Stock Call for availability (08) 9303 4982
O'Connor:
Nil-Stock Call for availability (08) 9303 4982
Description
AIR CLEANER ASSEMBLY, PFD POWERCORE
(Replaces D080020)
Cross Reference
- Nacco Materials
- S01351990002
- Pellenc
- 25B06A
- Thomas
- 92025636
Additional Fields
- SKU:
- D080186
- Availability:
- All Shipped orders are from our Wangara Branch
- Weight:
- 8,850.00 Grams
- Outlet Diameter:
- 88.9 mm (3.5 inch)
- Country Of Origin:
- United States
- HTS Code:
- 8421310052
- NMFC Code:
- 156600-03
- Gross Height:
- 17.7 IN
- Gross Length:
- 11.1 IN
- Gross Volume:
- 1.2507 FT3
- Gross Weight:
- 5.735 LB
- Gross Width:
- 11 IN
- Family:
- PSD
- Body Length:
- 380 mm (14.96 inch)
- Rated Flow HR:
- 6.7 m³/min (237 cfm)
- Rated Flow LR:
- 5.1 m³/min (180 cfm)
- Rated Flow MR:
- 6 m³/min (212 cfm)
- Overall Length:
- 380.1 mm (14.96 inch)
- Restriction HR:
- 254 mm H2O (10 inch H2O)
- Restriction LR:
- 152.4 mm H2O (6 inch H2O)
- Restriction MR:
- 203.2 mm H2O (8 inch H2O)
- Media Brand:
- PowerCore®
