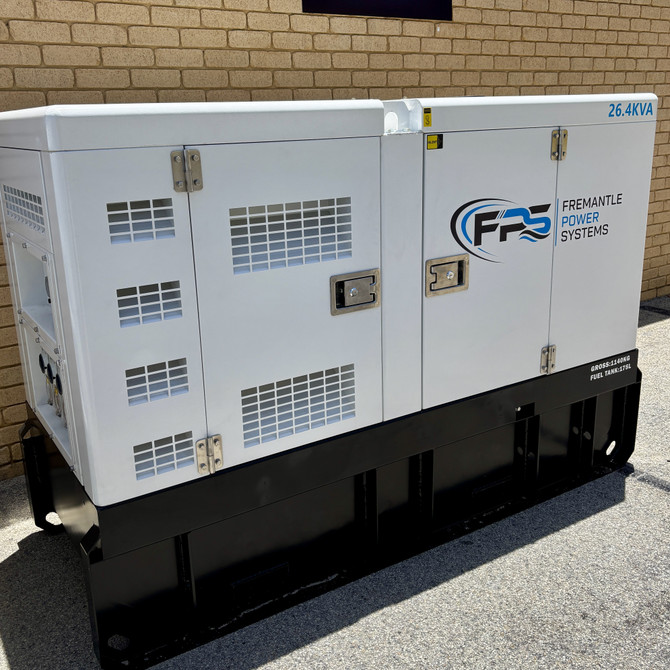

26KVA Silent Generator Set; Powered by Mitsubishi S4S Engine; Single Phase

Soundproof Diesel Generator – Model DPK-DM-27S

Single Phase Configuration

Engine

• Make / Model: Mitsubishi S4S (EPA Tier 4 Interim)
• Type: 4-cylinder diesel engine
• Speed: 1500 RPM
• Fuel System: Mechanical injection
• Emissions Compliance: EPA Tier 4 Interim
• Cooling: Water cooled

Alternator

• Make / Model: Stamford S1L2-K1
• Output Configuration: Single phase
• Frequency: 50 Hz
• Voltage: 220 V
• Insulation / Protection: As per Stamford standard specification

Control System

• Controller: ComAp AMF25
• Functionality:
• Automatic Mains Failure (AMF)
• Full engine and generator protection
• Monitoring of voltage, frequency, current, and alarms

Electrical Protection

• Main Circuit Breaker: ABB
• Type: 4-pole breaker
• Additional Protection:
• Type A RCD
• Shunt trip (remote emergency shutdown capability)

Acoustic Enclosure

• Type: Soundproof / silenced canopy
• Application: Suitable for standby and prime power installations where low noise is required

Starting & Heating

• Coolant Heater: Fitted
• Alternator Condensate / Anti-Condensation Heater: Fitted

Fuel System

• Fuel Tank:
• 24-hour run-time capacity
• Fully bunded base fuel tank

Air Intake

• Air Filter: Donaldson heavy-duty air filter

Output Sockets

• Single Phase:
• 3 × 20 A socket outlets (US type)

Electrical Output Ratings

• Prime / Rated Output:
• 26 kW / 26 kVA
• Standby Output:
• 28.6 kW / 28.6 kVA
• Power Factor: 1.0
• Phase: Single phase
• Frequency: 50 Hz
• Voltage: 220 V
