Donaldson

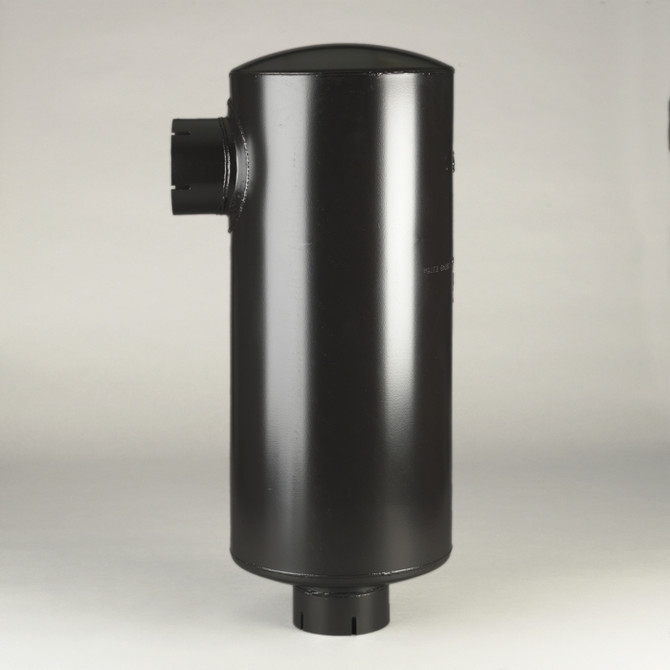

M120749 Donaldson Muffler, round style 3
Cross ReferenceNelson201577NPrinoth114666460SeagraveP3423079…
$1,377.09
Nil-Stock Call for availability (08) 9303 4982
All Shipped orders are from our Wangara Branch
Wangara:
Nil-Stock Call for availability (08) 9303 4982
O'Connor:
Nil-Stock Call for availability (08) 9303 4982
Description
Cross Reference
- Nelson
- 201577N
- Prinoth
- 114666460
- Seagrave
- P3423079
Additional Fields
- SKU:
- M120749
- Availability:
- All Shipped orders are from our Wangara Branch
- Weight:
- 25,090.00 Grams
- Shipping:
- Calculated at Checkout
- Outlet Diameter:
- 127.64 mm (5.03 inch)
- Country Of Origin:
- United States
- HTS Code:
- 8708924963
- NMFC Code:
- 125850-08
- Gross Height:
- 12 IN
- Gross Length:
- 32.5 IN
- Gross Volume:
- 3.4418 FT3
- Gross Weight:
- 29.49 LB
- Gross Width:
- 15.25 IN
- Style:
- Style 3
- Body Length:
- 654 mm (25.75 inch)
- Rated Flow HR:
- 69.3 m³/min (2447 cfm)
- Rated Flow LR:
- 49.9 m³/min (1762 cfm)
- Rated Flow MR:
- 69.3 m³/min (2447 cfm)
- Inlet Diameter:
- 127.64 mm (5.03 inch)
- Overall Length:
- 804.9 mm (31.69 inch)
- Body Diameter Maximum:
- 300.7 mm (11.84 inch)
- Attenuation HR:
- 18 dBA
- Attenuation LR:
- 12 dBA
- Inlet Clock Position:
- 6:00
- Back Pressure Low-Range:
- 25 mm Hg (0.98 inch Hg)
- Back Pressure Mid-Range:
- 51 mm Hg (2.01 inch Hg)
- Back Pressure High-Range:
- 51 mm Hg (2.01 inch Hg)
