Donaldson

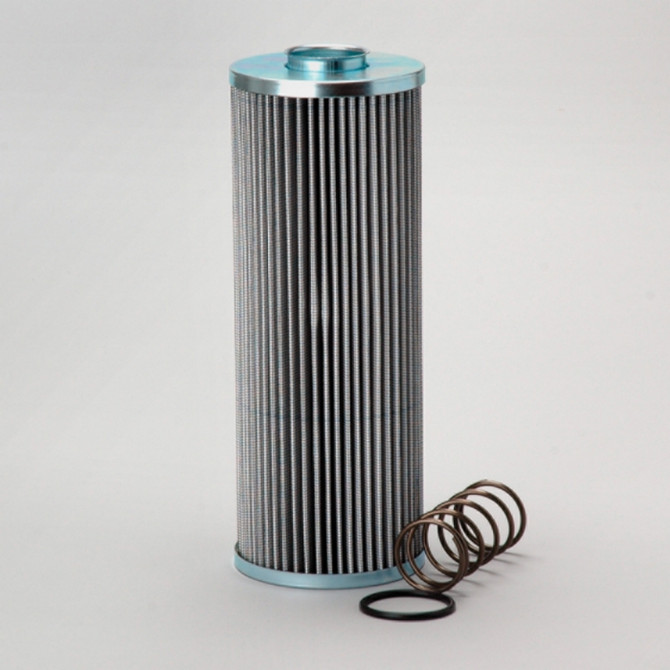

P171543 Donaldson Hydraulic filter, cartridge
Cross ReferenceF.b.o.CR20102Laverda4301938500PalfingerM63050046EA1761SofimaRE55FD1RE55CD1TerbergT27103176…
$79.53
Nil-Stock Call for availability (08) 9303 4982
Call for availability
Wangara:
Nil-Stock Call for availability (08) 9303 4982
O'Connor:
Nil-Stock Call for availability (08) 9303 4982
Description
Cross Reference
- F.b.o.
- CR20102
- Laverda
- 4301938500
- Palfinger
- M63050046
- EA1761
- Sofima
- RE55FD1
- RE55CD1
- Terberg
- T27103176
Additional Fields
- SKU:
- P171543
- Availability:
- Call for availability
- Weight:
- 1,000.00 Grams
- Shipping:
- Calculated at Checkout
- Length:
- 250 mm (9.84 inch)
- Media Type:
- Synteq XP
- Country Of Origin:
- Italy
- NMFC Code:
- 069100-05
- Gross Height:
- 0.29 M
- Gross Length:
- 0.1 M
- Gross Volume:
- 0.0029 M3
- Gross Weight:
- 1.002 KG
- Gross Width:
- 0.1 M
- Style:
- Cartridge
- Inner Diameter:
- 41 mm (1.61 inch)
- Outer Diameter:
- 95 mm (3.74 inch)
- Collapse Burst:
- 10 bar (145 psi)
- Efficiency Beta 1000:
- 11 micron
- Bypass Valve:
- Yes
- Bypass Valve Setting LR:
- 1.5 bar (22 psi)
- Efficiency Beta 200:
- 9 micron
