Donaldson

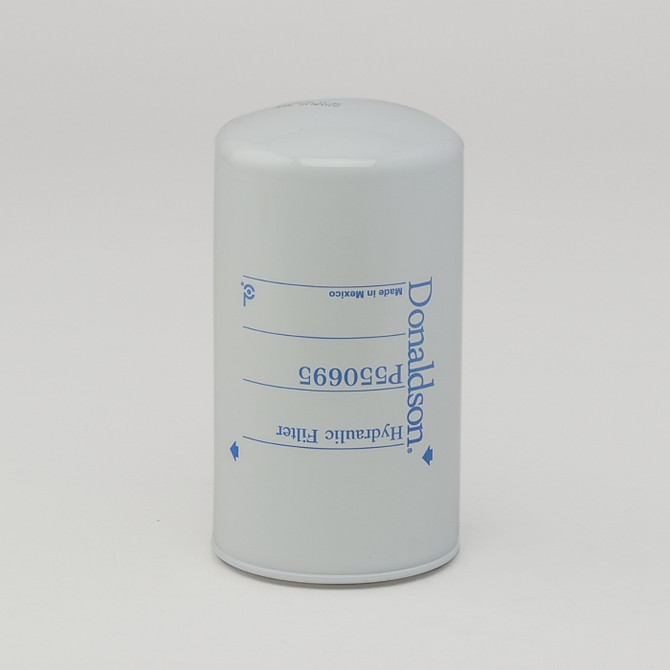

P550695 Donaldson Hydraulic filter, spin-on
Cross ReferenceAc DelcoPF912VmcHF550695…
Nil-Stock Call for availability (08) 9303 4982
All Shipped orders are from our Wangara Branch
Wangara:
Nil-Stock Call for availability (08) 9303 4982
O'Connor:
Nil-Stock Call for availability (08) 9303 4982
Description
Cross Reference
- Ac Delco
- PF912
- Vmc
- HF550695
Additional Fields
- SKU:
- P550695
- Availability:
- All Shipped orders are from our Wangara Branch
- Weight:
- 1,140.00 Grams
- Length:
- 173.48 mm (6.83 inch)
- Thread Size:
- 1-12 UN
- Gasket OD:
- 71.88 mm (2.83 inch)
- Country Of Origin:
- Mexico
- HTS Code:
- 8421299013
- NMFC Code:
- 069100-08
- Gross Height:
- 0.17 M
- Gross Length:
- 0.1 M
- Gross Volume:
- 0.0017 M3
- Gross Weight:
- 1.215 LB
- Gross Width:
- 0.1 M
- Style:
- Spin-On
- Outer Diameter:
- 94.74 mm (3.73 inch)
- Gasket ID:
- 62.23 mm (2.45 inch)
- Bypass Valve:
- Yes
- Bypass Valve Setting LR:
- 1.4 bar (20 psi)
- Bypass Valve Setting HR:
- 1.7 bar (25 psi)
- Efficiency Beta 2:
- 26 micron
