M100465 Donaldson Muffler, round style 1
Donaldson

M100465 Donaldson Muffler, round style 1

Inc. GST

Awaiting stock: 5-10 days

SKU:
M100465
Weight:
24,420.00 Grams
Width:
27.00 (cm)
Height:
27.00 (cm)
Depth:
134.00 (cm)
Shipping:
Calculated at Checkout
Outlet Diameter:
127.64 mm (5.03 inch)
Country Of Origin:
United States
HTS Code:
8708924262
NMFC Code:
125850-05
Gross Height:
10.5 IN
Gross Length:
52.625 IN
Gross Volume:
3.3576 FT3
Gross Weight:
27.23 LB
Gross Width:
10.5 IN
Style:
Style 1
Body Length:
1128.8 mm (44.44 inch)
Rated Flow HR:
79 m³/min (2790 cfm)
Rated Flow LR:
45.6 m³/min (1610 cfm)
Rated Flow MR:
64.4 m³/min (2274 cfm)
Inlet Diameter:
127.64 mm (5.03 inch)
Overall Length:
1295.4 mm (51.00 inch)
Body Diameter Maximum:
255.5 mm (10.06 inch)
Attenuation HR:
15 dBA
Attenuation LR:
10 dBA
Back Pressure Low-Range:
7.9 mm Hg (0.31 inch Hg)
Back Pressure Mid-Range:
15.7 mm Hg (0.62 inch Hg)
Back Pressure High-Range:
23.9 mm Hg (0.94 inch Hg)

Cart Subtotal: $0.00

View basket Checkout

Other Compatible Filters

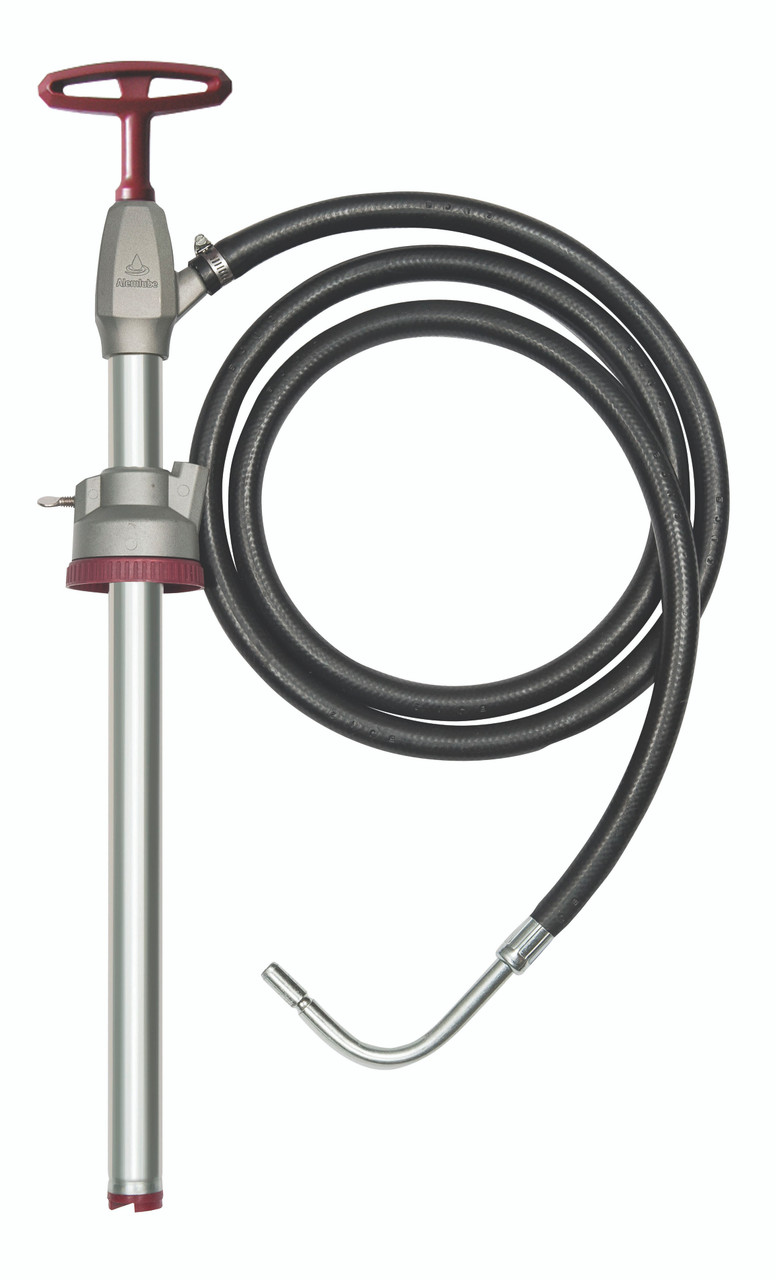

10028 Alemlube heavy duty gear and engine oil drum pump;
